Supercritical Power Plant

Asyut (Egypt)

Design, production, installation and commissioning of a Generating Set of 2250 kVA in PRP and 2475 in LTP at 50°C deg. ambient temperature, 400/230V, 50 Hz, 1500rpm, equipped with:

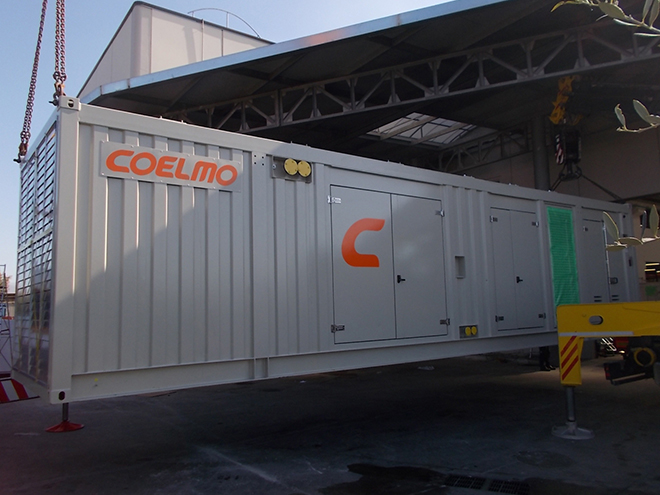

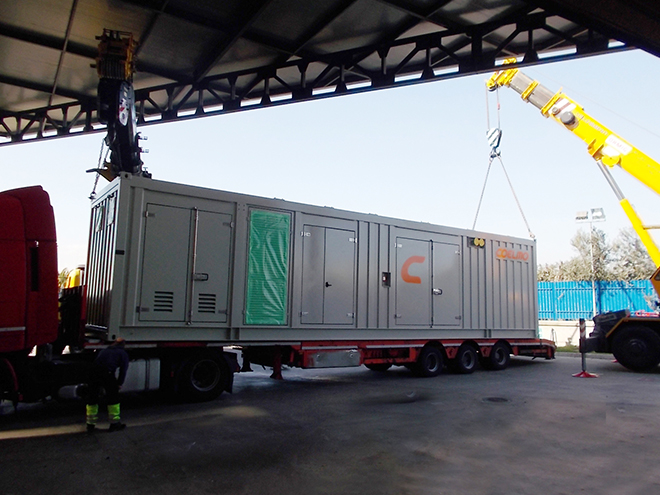

- Sound proof containerized version 85 dBA @ 1mtr, equipped with: intake and gravity exhaust louvres with dust filters, Interior lighting, Interior electrical convenience oulets, Ventilation system and Bird screen
- Integrated daily automony fuel tank 4000 Litres capacity, double wall, including fuel level gauge, interconnection pipe, vent pipe with flame arrestor, level switch, man hole, valve drain connection
- Skid mounted Synchronization control panel with protocole Modbus RS485 and Hand wire 'free standing'
- Smoke detection devices
- Generating Set Protection kit with 4 pole Air Circuit Breaker
- Motorized and removable type 4 x 3200A
